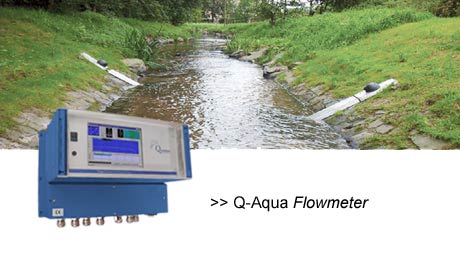

Surface water	Ultrasonic discharge measurement Path lengths from 0,8 to 10 m
stationary systems		Overview small
stationary systems		Example of use
Small		Example of use
Small
Medium


Large
Wireless systems
Responder systems
Responder systems
Doppler systems
Doppler systems
portable systems
RiverSurveyor S5 / M9
FlowTracker

Sewage monitoring
Q-SEWAGE Flowmeter
Q-SEWAGE Flowmeter			Discharge measurement systems Printout
Q-SEWAGE Controller
Q-SEWAGE Controller	Flowmeter system for short distances Type: AFC 4-10/200 + 4 sensors Path lengths: 0,8 to 10 meters Number of maximal connectable sensors: 4 Frequency: 200 kHZ Measurement range: -10 to +10 m/s Accuracy v: < 0,1% deviation Accuracy Q: < 3% deviation, better than +/- 1%, if calibrated on site Housing: 330 x 235 x 190 (W x H x D), Compact housing IP 65 Remote control Remote data transfer: analog, ISDN, GSM, GPRS Power supply: 12 - 36 VDC Power consumption: 11 VA at continous operation, < 1 VA at standby mode
